Detail produk:
|
Brand: | BOE | Diagonal Size: | 15.6" |
---|---|---|---|
Resolution: | 1366(RGB)×768, WXGA 100PPI | Luminance: | 220 cd/m² |
Viewing Angle: | 45/45/20/40 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

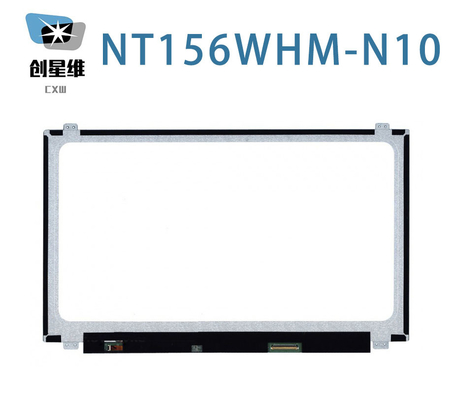

Basic Info : | Panel Brand | Panel Model | NT156WHM-N10 5 Compatible | |
---|---|---|---|---|
Diagonal Size | 15.6" | Application | ||
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
Pixel Features : | Pixel Format | 1366(RGB)×768 [WXGA] | Dot Pitch | 0.084×0.252 mm (H×V) |
---|---|---|---|---|
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.252×0.252 mm (H×V) [100PPI] | |
Mechanical Size : | Display Area | 344.232×193.536 mm (H×V) | Bezel Area | - |
Outline Dim. | 359.5×223.8 mm (H×V) | Outline Depth | 3.5/3.8 (Typ./Max.) mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style | Flat (PCBA Flat, T3.4~4.0mm) | |
Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs | |||
Other Features : | Weight | 400g (Max.) | Surface | Glare (Haze 0%) |
Basic Information : | Brightness | 220 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
---|---|---|---|---|
Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
Viewing Direction | 6 o'clock | Response Time | 12 (Typ.)(Tr+Td) (ms) | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
Color Temperature | 6485K | White Uniformity | 1.25/1.54 (Max.)(5/13 points) | |
1931 Color Gamut : | NTSC Ratio | 47% | sRGB | 66% coverage |
Adobe RGB | 50% coverage | DCI-P3 | 49% coverage | |
Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
---|---|---|---|---|---|---|
Replacement | - | Amount | 9S4P | Position | Edge light type | |
Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
Driver Electrical : | Voltage Input | 5.5/12.0/21.0V (Min./Typ./Max.) | Current Input | - | ||
Consumption | 2.6W (Max.) |
Signal Systerm : | LVDS (1 ch, 6-bit) | Logic Voltage | - | |||
---|---|---|---|---|---|---|
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | TBD | ||
Consumption | 1.0/1.2W (Typ./Max.) | |||||
Interface Features : | Type | Connector | Position | |||
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
STM | MSAK24025P40 | 0.5 mm | 40 pins | 1 pcs | LVDS-40P1C6B-050E |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.232(W)×193.536(H) mm, outline size of 359.5(W)×223.8(H)×3.8(D) mm, with surface treament of Glare (Haze 0%), net weight of 400g (Max.), shape stype of Flat (PCBA Flat, T3.4~4.0mm). As a TN, Normally White, Transmissive LCM product, NT156WHM-N10 can provides 220 cd/m² display brightness 500:1 transimissive contrast ratio, 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 12 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NT156WHM-N10 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
